ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. : The Best Brand of Boilers & Accessories to Buy
Thinking of buying ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board.? Well, if yes, then here is our complete review can help you make the right choice. Choosing a quality product is not easy and often you will have to decide whether a specific ingredient is still acceptable for you or not. Use these helpful tips buying guide to help you choose the right product. Read more… Click here
ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. is an excellent product, any reviews from consumers are satisfied with this product. ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. is definitely the best choice for people who are looking for high quality product but with cheap price.
ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. Descriptions
PRODUCT DESCRIPTIONS AND FEATURES :
This item has been assembled, and electrical test passed.Size: 296 x 72 x 25mm / 11.65 x 2.83 x 1 inch.Contact Rating: 250VAC / 10A or 30VDC/ 10A.SRU-48VDC-SL-C Power Rrlay.Power Supply: DC 48V / 160mA (relay all ON).

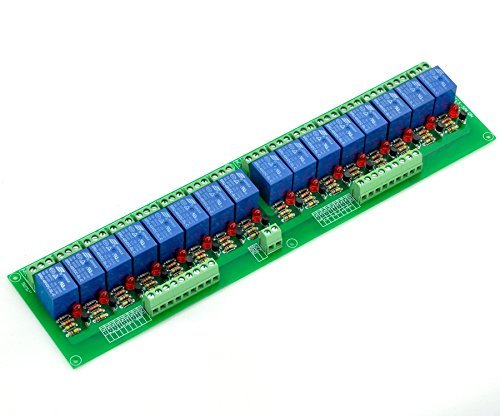

1 Piece 16 Channel SPDT Power Relay Module Board. This item has been assembled, and electrical test passed. LED indicator for each relay channel. 2N5551 transistor driving relay. FR-4 Fiber glass PCB (Double Layer). PCB thickness: 1.6mm. Size: 296 x 72 x 25mm / 11.65 x 2.83 x 1 inch. Power Supply: DC 48V / 160mA (relay all ON). Input control signal voltage: 0V ~ 0.4V Low stage (relay not action). 0.4V ~ 3.3V (unknown state). 3.3V ~ 24V High state (relay action). Input control signal high state current: 3.3V: 0.6mA. 5V: 0.9mA. 12V: 2.4mA. 24V: 5mA. Relay Spec: Coil: Voltage: 48V DC, Coil Resistance: 6400 OHM. Contact Rating: 250VAC / 10A or 30VDC/ 10A. Manufacturer: SONGLE Type: SRU-48VDC-SL-C. Datasheet: http://songle.com/en/pdf/2008414162961003.pdf This is a very simple module board, no paper specifications, any questions, feel free to tell me. Wire connection and PCB size: VCC: Power supply input, 48V DC. GND: Power supply ground and control signal ground. IN_x: Control signal input, Low: relay OFF, High: relay ON. COM / NO / NC: (C1=COM1, C2=COM2) Control signal state low, the relay OFF, COM - NO disconnected, COM - NC connected. Control signal stage high, the relay ON, COM - NO connected, COM - NC disconnected. Read more details..
Where Is The Best Place To Buy ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. Online
With so many different brands and types of similar products, ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. is a best seller and high quality product. I definitely recommend it. You can buy ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. from reputable sites by following the link below.
Tags: Best Deal ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board., Where Is The Best Place To Buy ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. Online, ELECTRONICS-SALON 16 SPDT Power Relay Module, DC 48V Coil, 10A 250VAC/30VDC, Board. : The Best Brand of Boilers & Accessories to Buy.
